Engineering information

AR215

Drivers　

LF:2*15"

Frequency Range

1000W

Rated Power

1300W

Nominal impedance

4 ohms

Coverage angle (horizontal x vertical)

35Hz-350KHz

Sensitivity(1m/1W)

100dB

MAX SPL

133dB

Enclosure Material

Birch plywood

Enclosure Grille

Black round hole dustproof steel mesh inside the sticky breathable cotton

Finish

Brown water-based wear-resistant paint (color can be customized)

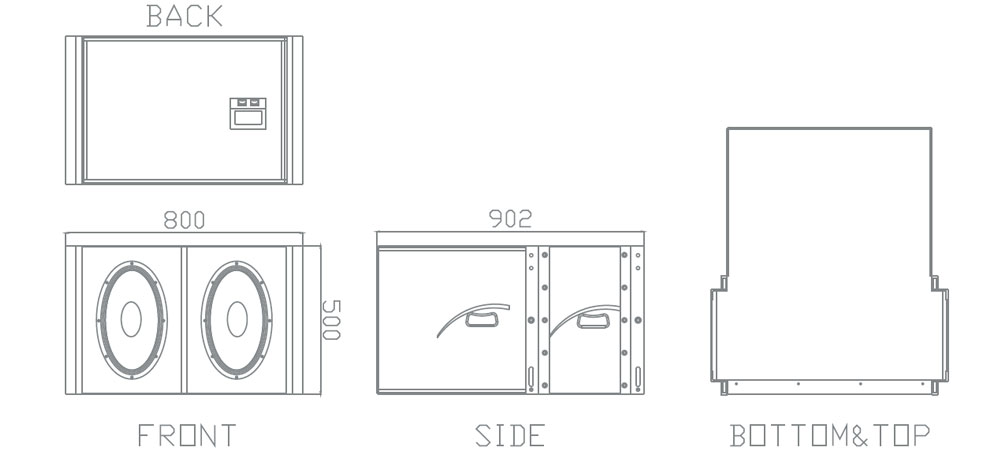

Dimensions(W*D*H)（mm)

800*902*500

Net weight  (Kg)

73Kg

Applications

Theater, auditorium, banquet hall, mobile performance, sports venues, multi-purpose hall, large conference room
