Engineering information |
AR210A |
|
Drivers |
LF:2*10"/HF:2*1.75" |
|
Frequency Range |
600W |
|
Rated Power |
800W |
|
Nominal impedance |
16 ohms |
|
Coverage angle (horizontal x vertical) |
65Hz-19KHz |
|
Sensitivity(1m/1W)) |
102dB |
|
MAX SPL |
133dB |
| Dispersion(HxV) | 120°*15° |
|
Enclosure Material |
Birch plywood |
|
Enclosure Grille |
Black round hole dustproof steel mesh inside the sticky breathable cotton |
|
Finish |
Brown water-based wear-resistant paint (color can be customized) |
|

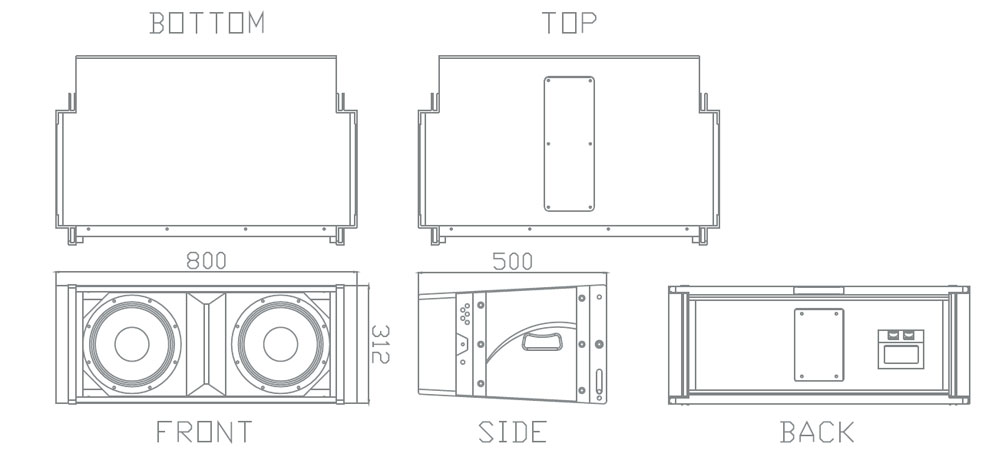

Dimensions(W*D*H)（mm) |
800*500*312 |
|
Net weight (Kg) |
38.2Kg |
|
Applications |
Theater, auditorium, banquet hall, mobile performance, sports venues, multi-purpose hall, large conference room |
