Engineering information

AR115

Drivers　

LF: 1 * 15 "neodymium magnetic / HF: 1 * 3" neodymium magnetic

Rated Power

LF: 400W / HF: 100W

Rated power

LF: 600W / HF: 300W

Nominal impedance

LF: 8 ohms  / HF: 8 ohms

Frequency Range

45Hz-19KHz

Sensitivity(1m/1W)

LF: 102dB / HF: 112dB

MAX SPL

LF: 131dB / HF: 135dB

Enclosure Material

Birch plywood

Enclosure Grille

Black hexagonal hole dustproof steel net outside the paste breathable cloth

Finish

Water-based water-based wear-resistant paint (color can be customized)

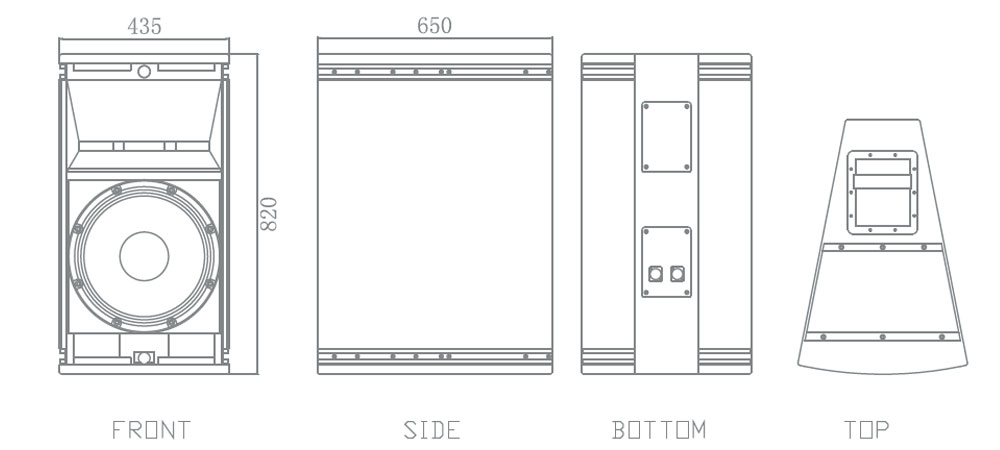

Dimensions(W*D*H)（mm)

435*650*820

Net weight  (Kg)

47.3Kg

Applications

Theater, auditorium, banquet hall, mobile performance, sports venues, bars and slow roll, multi-function hall
