Engineering information

AR112

Drivers　

LF: 1 * 12 "neodymium magnetic / HF: 1 * 3" neodymium magnetic

Rated Power

450W

Rated power

600W

Nominal impedance

8 ohms

Frequency Range

48Hz-19KHz

Sensitivity(1m/1W)

99dB

MAX SPL

129dB

Enclosure Material

Birch plywood

Enclosure Grille

Black Hexagonal hole dustproof steel mesh inside the sticky breathable cotton

Finish

Water-based water-based wear-resistant paint (color can be customized)

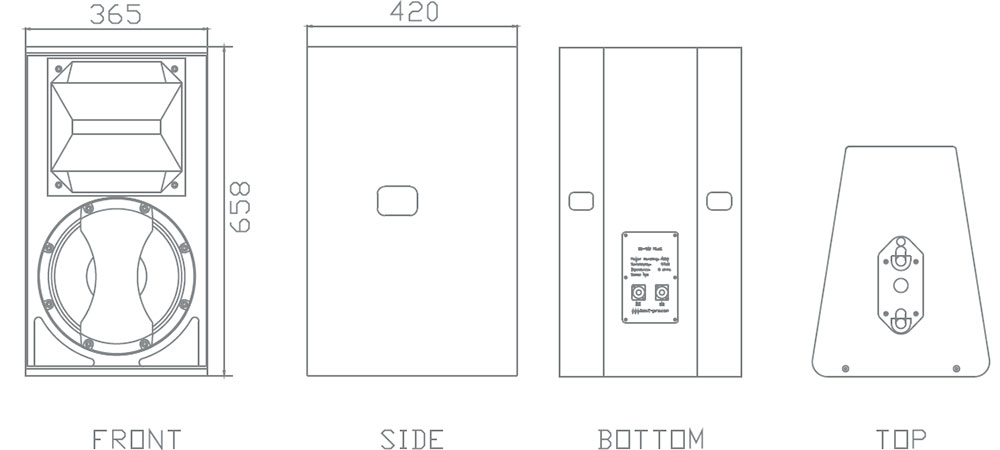

Dimensions(W*D*H)（mm)

365*420*658

Net weight  (Kg)

27.3Kg

Applications

Theater, auditorium, banquet hall, mobile performance, sports venues, bars and slow roll, multi-function hall
