Engineering information

BT2318

Drivers　

LF:  1*18"  /  MF: 2*13.5"  /  HF:2*3"

Rated Power

LF:  70000W  /  HM:&900W

Rated power

LF:  1000W  /  HM:&1000W

Nominal impedance

LF:  8ohms  /  HM&4 ohms

Frequency Range

28Hz-19KHz

Sensitivity(1m/1W)

103dB

MAX SPL

138dB

Construction

Enclosure Material

Birch plywood

Enclosure Grille

Black Hexagonal hole dustproof steel mesh inside the sticky breathable cotton

Finish

Water-based water-based wear-resistant paint (color can be customized)

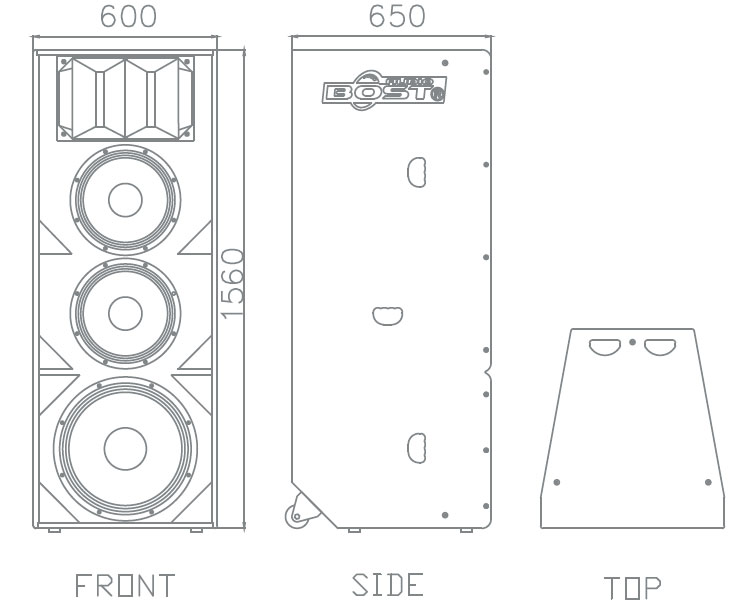

Dimensions(W*D*H)（mm)

600*650*1560

Net weight (Kg)

116.2Kg

Applications

Banquet hall, large conference room, lecture hall, performing hall, small and medium-sized mobile performances, multi-purpose hall, auditorium, sports venues.
