Engineering information

BT215B

Drivers　

LF:  1*15"  /   HF:1*3"

Rated Power

1000W

Rated power

1100W

Nominal impedance

4ohms

Frequency Range

35Hz-19KHz

Sensitivity(1m/1W))

100dB

MAX SPL

132dB

Construction

Enclosure Material

Birch plywood

Enclosure Grille

Black vertical flat hexagonal hole dust steel net inside the sticky breathable cotton

Finish

Water-based water-based wear-resistant paint (color can be customized)

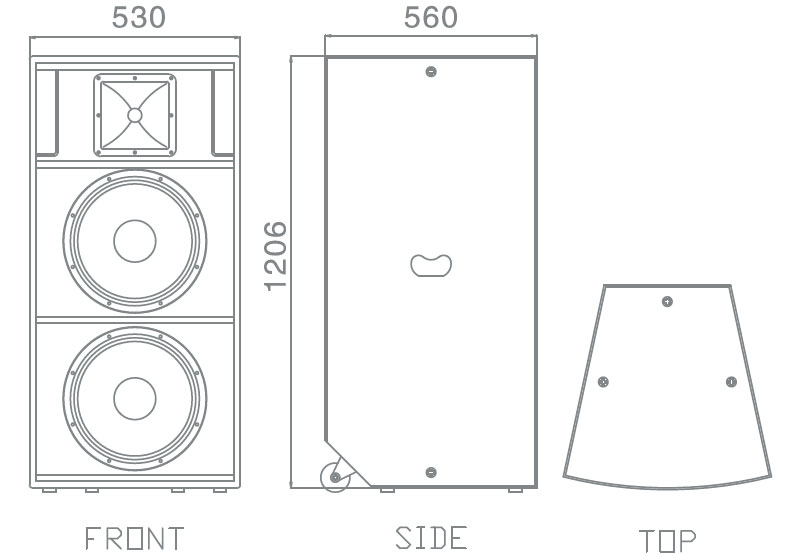

Dimensions(W*D*H)（mm)

530*560*1206

Net weight (Kg)

56.3Kg

Applications

Theater, performing hall, small and medium-sized mobile performances, multi-purpose hall, auditorium, sports venues, dance halls, banquet hall, lecture hall, theater, school.
