Engineering information

BT24N

Drivers　

LF: 2 * 12 "neodymium magnetic / HF: 1 * 3" neodymium magnetic

Rated Power

800W

Rated power

1000W

Nominal impedance

4ohms

Frequency Range

100Hz-19KHz

Sensitivity(1m/1W)

110dB

MAX SPL

142dB

Construction

Enclosure Material

Birch plywood

Enclosure Grille

Black Hexagonal hole dustproof steel mesh inside the sticky breathable cotton

Finish

Environmentally friendly water-based wear-resistant paint (color can be customized）

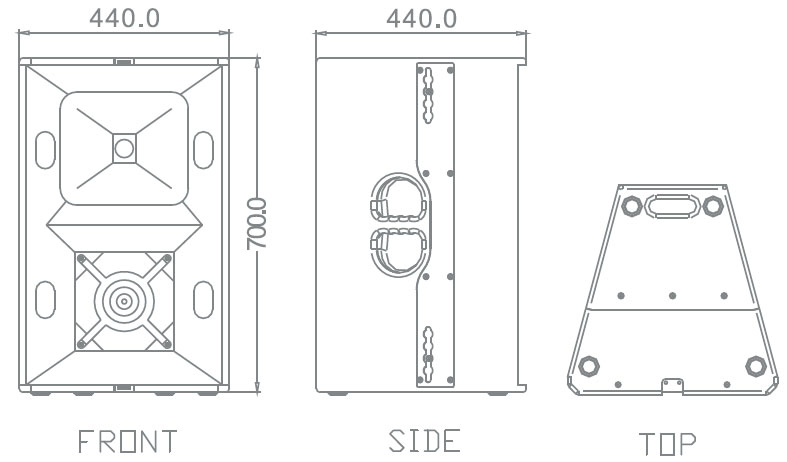

Dimensions(W*D*H)（mm)

440*440*706

Net weight  (Kg)

35.5Kg

Applications

Theater, performing hall, small and medium-sized mobile performance, multi-purpose hall, auditorium, sports venues, dance halls, banquet hall, lecture hall, theater, school
