TFR08
Applicable Scope:
Shadow it, shadow K, shadow coffee and private cinema.
SPECIFICATONS
|
Product model |
TFR08 |
|
System type |
Surround channel speaker |
|
Rated power (built-in frequenc |
200W/8 ohms AES |
|
Rated impedance |
8 ohms |
|
Frequency Range |
65Hz-20KHz |
|
Sensitivity(1m/1W) |
96dB |
|
MAX SPL |
122dB |
|
Speaker unit |
LF:8"*1/HF:1.35"*1 |
|
Dimensions(W*D*H)（mm) |
300*435*270 |
|
Net weight (Kg) |
10.9Kg |
|
Applications |
Shadow it, shadow K, shadow coffee and private cinema. |

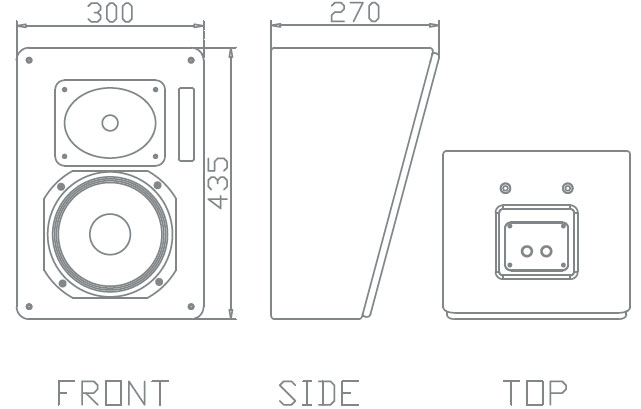

DRAWINGS
