Engineering information

RK315

Drivers　

LF: 1*15" /MF:1*8"/ HF: 1*1.75"

Rated Power

LF:400W/HF&MF:250W

Rated power

LF:600W/HF&MF:450W

Nominal impedance

LF:8 ohms/HF&MF:8 ohms

Frequency Range

50Hz-19KHz

Sensitivity(1m/1W))

LF:102dB/HF&MF:106dB

MAX SPL

LF:131dB/HF&MF:133dB

Enclosure Material

Birch plywood

Enclosure Grille

/

Finish

Purple environmentally friendly water-based wear-resistant paint (color can be customized)

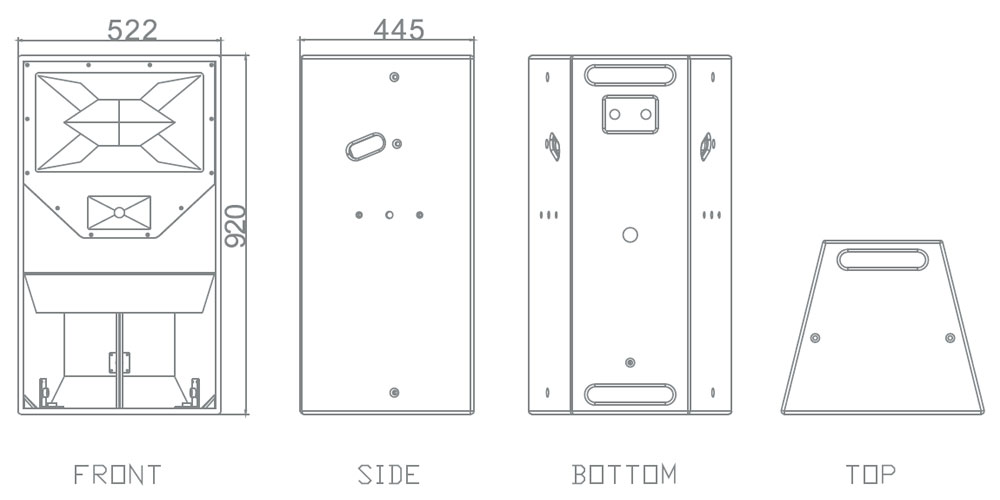

Dimensions(W*D*H)（mm)

522*455*920

Net weight (Kg)

37.9Kg

Applications

Bar, slow it, multi-function hall, auditorium
