LF115
15＂2-way full range speaker
Applicable Scope:
Multi-purpose hall, banquet hall, auditorium, conference room, lecture hall, club, nightclub, bar, sports stadium, luxury private rooms.
SPECIFICATONS
|
Engineering information |
LF115 |
|
Drivers |
LF: 1*15" / HF:1*3" |
|
Rated Power |
550W |
|
Rated power |
800W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
35Hz-19KHz |
|
Sensitivity(1m/1W) |
100dB |
|
MAX SPL |
131dB |
| Dispersion(HxV) | 90°*60° |
|
Enclosure Material |
Birch plywood |
|
Enclosure Grille |
Black hexagonal hole dustproof steel net outside the paste breathable cloth |
|
Finish |
Water-based water-based wear-resistant paint (color can be customized) |
|
Dimensions(W*D*H)（mm) |
438*453*690 |
|
Net weight (Kg) |
32.5Kg |
|
Applications |
Multi-purpose hall, banquet hall, auditorium, conference room, lecture hall, club, nightclub, bar, stadium, luxury |

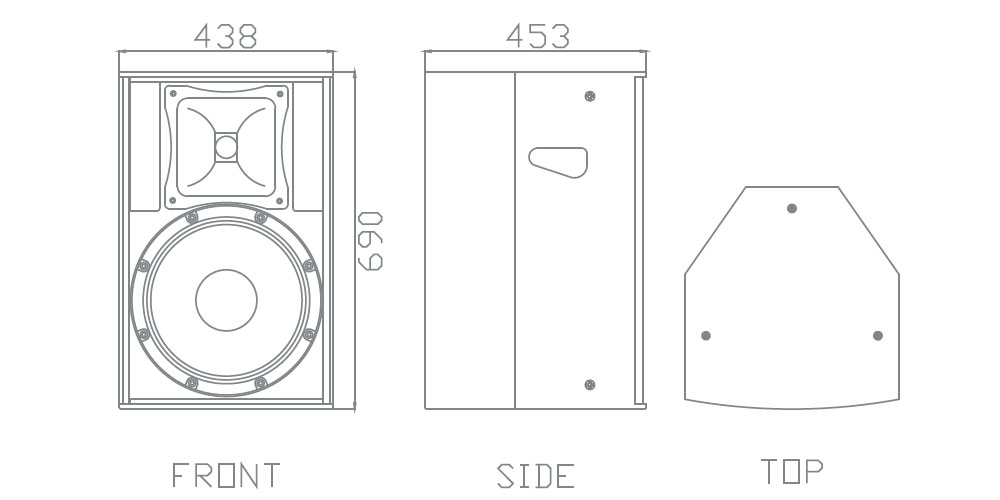

DRAWINGS
