ARV12
Applicable Scope:
-Medium and large-scale performances, sound reinforcement of stadiums, concert halls, opera houses, etc.
SPECIFICATONS
| Drivers |
LF: 2*12"Neodymium magnet/MF:1*10"Neodymium magnet/HF:2*3"Neodymium magnet |
| Rated Power |
LF:500W/MHF:200W |
| Rated power |
TD423DSP |
| Nominal impedance |
LF:6 ohms/MHF:12 ohms |
| Frequency Range |
48Hz-19KHz |
| Sensitivity(1m/1W) |
110dB |
| MAX SPL |
145dB |
| Dispersion(HxV) | 90°*14° |
| Construction |
|
| Enclosure Material |
Birch splint |
| Enclosure Grille |
Black round hole dust-proof steel mesh with air permeable cotton |
| Finish |
Black environment-friendly imported polyurea wear-resistant paint (color can be customized according to customer requirements) |
| Dimensions(W*D*H)（mm) |
1100*570*360 |
| Net weight (Kg) |
60Kg |

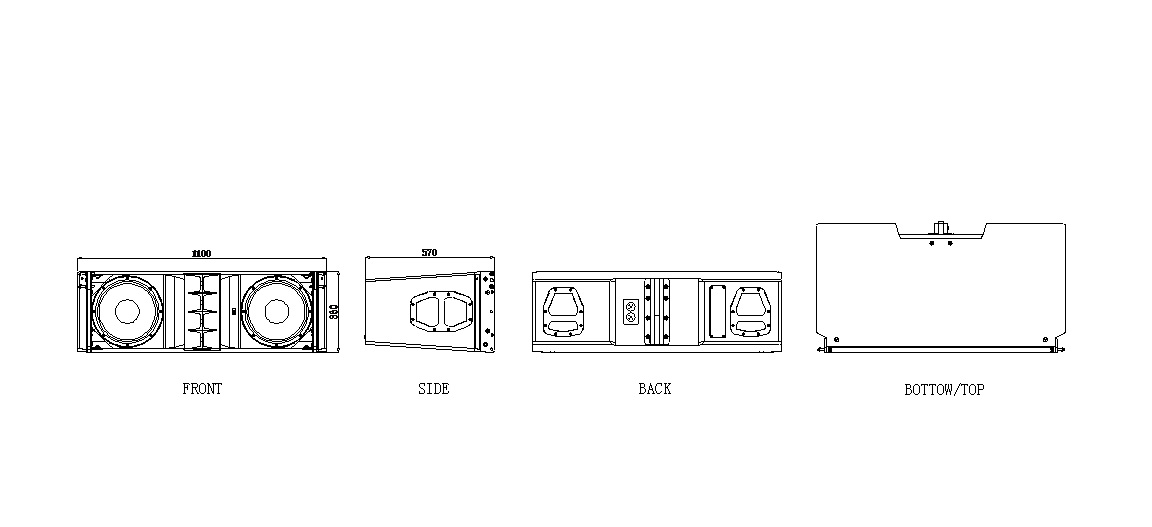

DRAWINGS
