Engineering information |
AR22B |
|
Drivers |
LF:2*12" |
|
Frequency Range |
800W |
|
Rated Power |
1100W |
|
Nominal impedance |
4 ohms |
|
Coverage Angle (Horizontal x Vertical) |
25Hz-260KHz |
|
Sensitivity(1m/1W) |
98dB |
|
MAX SPL |
130dB |
|
Enclosure Material |
Birch splint |
|
Enclosure Grille |
Black hexagonal dust-proof steel mesh with breathable cotton |
|
Finish |
Black environmentally friendly water-borne wear-resistant paint (color customizable) |
|

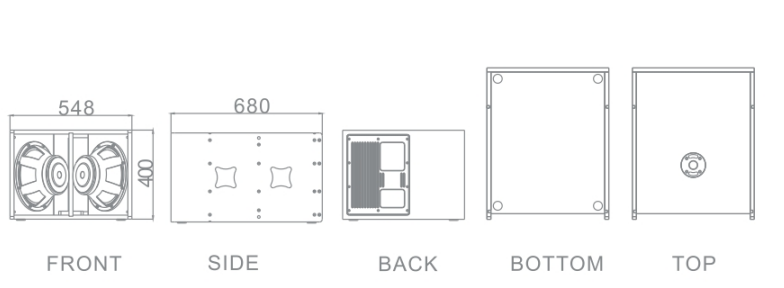

Dimensions(W*D*H)（mm) |
548*680*400 |
|
Net weight (Kg) |
47.9Kg |
|
Engineering information |
AR22BE |
|
Drivers |
LF:2*12" |
|
Frequency Range) |
800W |
|
Rated Power |
1200W+2*400W Active Module with DSP |
|
Nominal impedance |
4 ohms |
|
Coverage Angle (Horizontal x Vertical) |
25Hz-260KHz |
|
Sensitivity(1m/1W) |
98dB |
|
MAX SPL |
130dB |
|
Enclosure Material |
Birch splint |
|
Enclosure Grille |
Black hexagonal dust-proof steel mesh with breathable cotton |
|
Finish |
Black environmentally friendly water-borne wear-resistant paint (color customizable) |
|

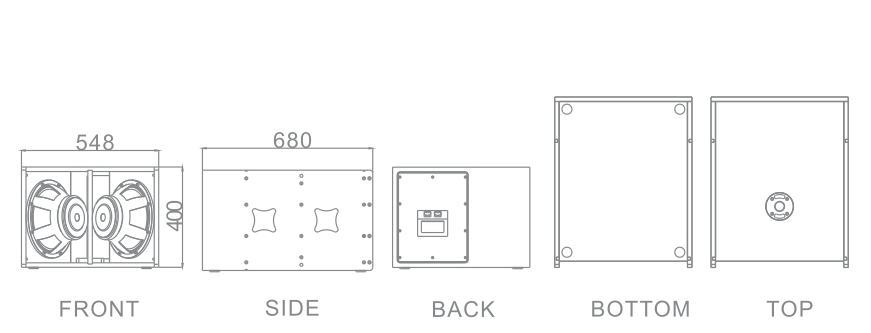

Dimensions(W*D*H)（mm) |
548*680*400 |
|
Net weight (Kg) |
52.6Kg |
