AR206
Applicable Scope:
-Small performance, small banquet hall, small multi-functional hall, small auditorium, music bar.
SPECIFICATONS
|
Engineering information |
AR206 |
|
Drivers |
LF:2*6.5"/HF:1*1.75" |
|
Frequency Range |
250W |
|
Rated Power |
450W |
|
Nominal impedance |
16 ohms |
|
Coverage Angle (Horizontal x Vertical) |
75Hz-19KHz |
|
Sensitivity(1m/1W) |
97dB |
|
MAX SPL |
124dB |
| Dispersion(HxV) | 100°*10° |
|
Enclosure Material |
Birch splint |
|
Enclosure Grille |
Black hexagonal hole dust-proof steel mesh with breathable cotton inside |
|
Finish |
黑色环保水性耐磨油漆（颜色可定制） |
|
Dimensions(W*D*H)（mm) |
548*320*180 |
|
Net weight (Kg) |
17.3Kg |

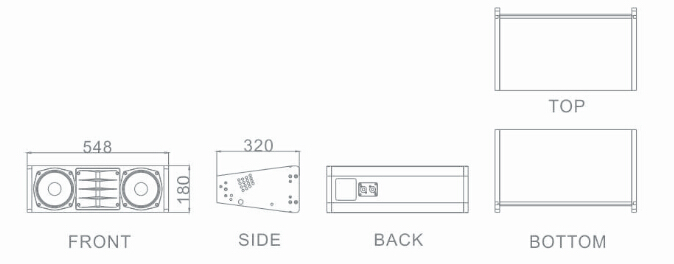

DRAWINGS
