Engineering information

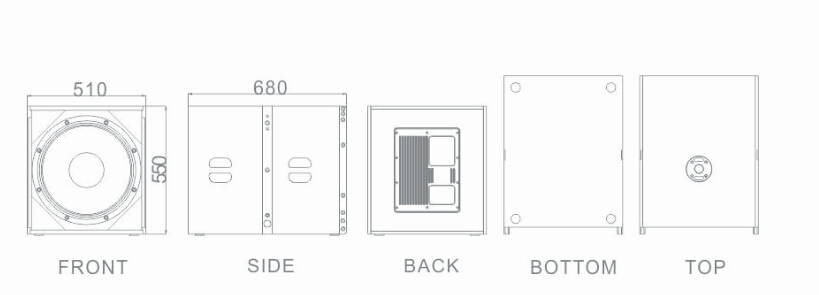

AR118

Drivers　

LF:1*18"

Frequency Range

600W

Rated Power

1100W

Nominal impedance

8 ohms

Coverage Angle (Horizontal x Vertical)

30Hz-260KHz

Sensitivity(1m/1W))

100dB

MAX SPL

131dB

Enclosure Material

Birch splint

Enclosure Grille

Air permeable cotton in black square hole dustproof steel mesh

Finish

Black environmentally friendly water-borne wear-resistant paint (color customizable)

Dimensions(W*D*H)（mm)

510*680*550

Net weight (Kg)

44.6Kg

Engineering information

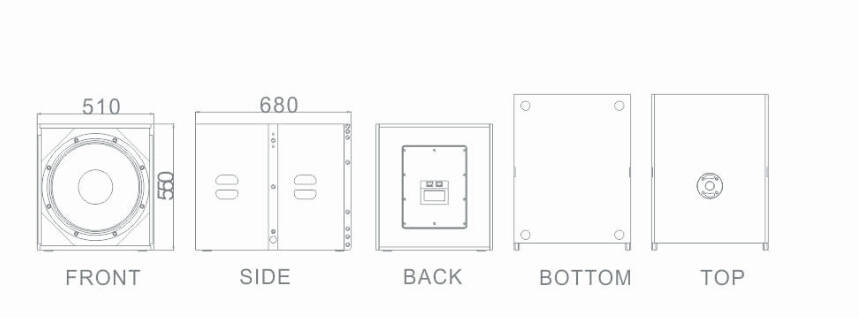

AR118E

Drivers　

LF:1*18"/

Frequency Range

600W

Rated Power

2*1200WActive Module with DSP

Nominal impedance

8 ohms

Coverage Angle (Horizontal x Vertical)

30Hz-260KHz

Sensitivity(1m/1W)

100dB

MAX SPL

131dB

Enclosure Material

Birch splint

Enclosure Grille

Air permeable cotton in black square hole dustproof steel mesh

Finish

Black environmentally friendly water-borne wear-resistant paint (color customizable)

 Dimensions(W*D*H)（mm)

510*680*550

Net weight  (Kg)

51.3Kg
