AR110
Applicable Scope:
-Small performance, banquet hall, multi-function hall, auditorium, school, theatre, small stadium (indoor)
SPECIFICATONS
|
Engineering information |
AR110 |
|
Drivers |
LF:1*10"/HF:2*1.75" |
|
Frequency Range |
350W |
|
Rated Power |
600W |
|
Nominal impedance |
8 ohms |
|
Coverage Angle (Horizontal x Vertical) |
65Hz-19KHz |
|
Sensitivity(1m/1W) |
98dB |
|
MAX SPL |
126dB |
| Dispersion(HxV) | 100°*15° |
|
Enclosure Material |
Birch splint |
|
Enclosure Grille |
Air permeable cotton in black square hole dustproof steel mesh |
|
Finish |
Black environmentally friendly water-borne wear-resistant paint (color customizable) |
|
产品尺寸 Dimensions(W*D*H)（mm) |
510*355*275 |
|
Net weight) (Kg) |
22.7Kg |

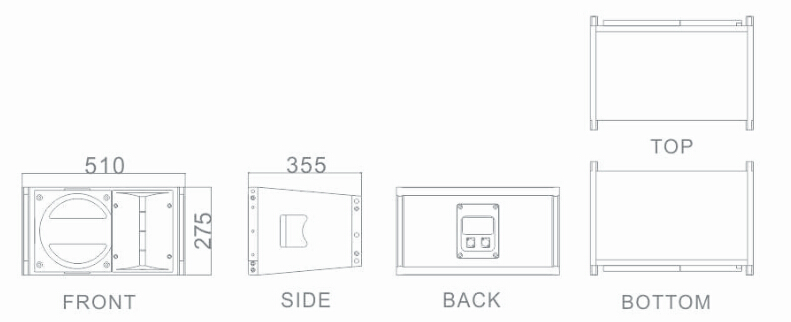

DRAWINGS
