HR10
10＂Two-way Passive Surround Sound
Applicable Scope:
Powerful surround sound applications for cinemas.
SPECIFICATONS
|
System Type: |
Built-in two-way surround speakers |
|
Rated power (built-in frequency): |
200W/8 ohms AES |
|
Rated impedance: |
8 ohms |
|
Frequency range (± 3dB): |
50Hz-20KHz |
|
Coverage angle: |
Level 100o, vertical 100o |
|
Sensitivity: |
95dB |
|
Maximum sound pressure level: |
121dB |
|
Wiring: |
Spring clamp |
|
unit: |
Treble: 1.35 "x1 / bass: 10" x1 |
|
Product Size: |
Wide 398x high 519x deep 268mm |

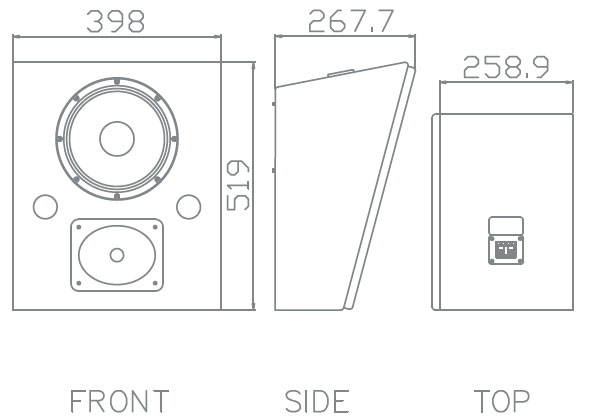

DRAWINGS
