HR08A
8＂Two-way Passive Surround Sound
Applicable Scope:
Powerful surround sound applications for cinemas.
SPECIFICATONS
| System Type: | Built-in two-way surround speakers |
| Rated power (built-in frequency): | 150W/8 ohms AES |
| Rated impedance: | 8 ohms |
| Frequency range (± 3dB): | 68Hz-20KHz |
| Coverage angle: | Level 100o, vertical 100o |
| Sensitivity | 94dB |
| Maximum sound pressure level: | 119dB |
| Wiring: | Spring clamp |
| unit: |
Treble: 1.35 "x1 / bass: 8" x1 |
| Product Size: | Width 320x high 435x deep 247mm |

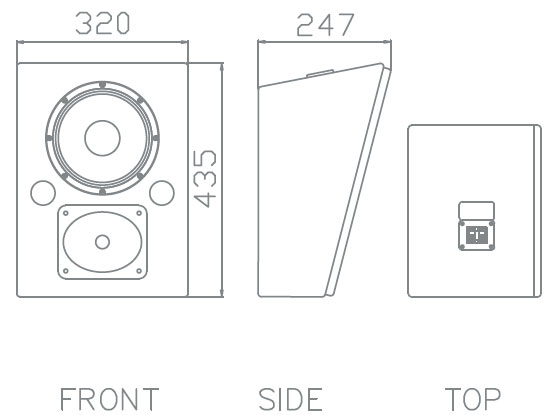

DRAWINGS
