System Type:

Built-in, external three-way system

Rated power (built-in frequency):

1200W/4 ohms AES

Rated power (external frequency):

Treble: 100W / midrange: 250W / bass: 800W

Rated impedance:

Treble: 8 ohms / midrange: 8 ohms / bass: 4 ohms

Frequency range (± 3dB):

40Hz-18KHz

Coverage angle:

Level 90o, vertical 50o

Sensitivity:

Treble: 115dB / midrange: 110dB / bass: 101dB

Maximum sound pressure level:

Treble: 138dB / midrange: 137dB / bass: 133dB

Wiring:

Spring terminal

unit:

Treble: 3 "x1 / midrange: 10" x1 / bass: 15 "x2

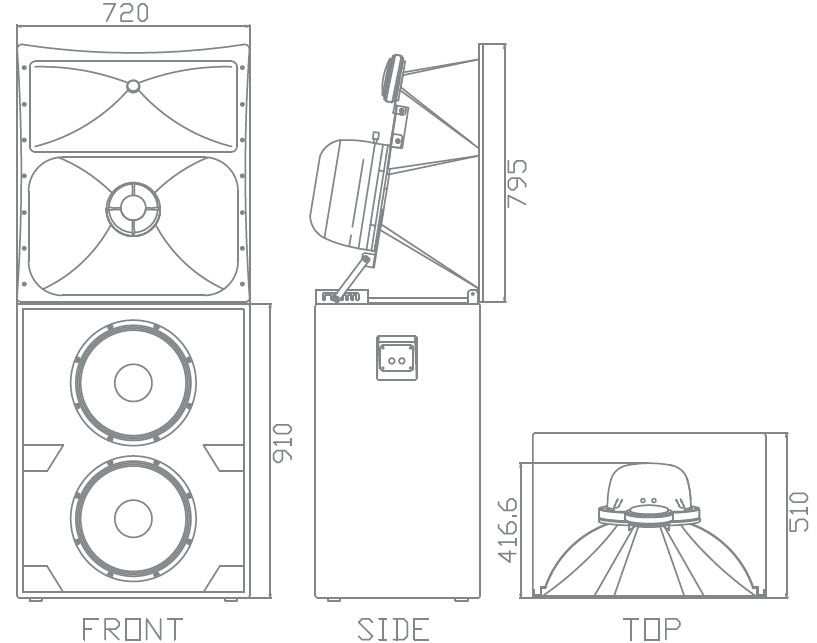

Dimensions (High Tone):

Width 720x high 795x deep 417mm

Product size (bass):

Width 720x high 910x deep 510mm
