System Type:

Built-in, external two-way system

Rated power (built-in frequency):

900W/ 4ohms AES

Rated power (external frequency):

Treble: 100W / bass: 800W

Rated impedance:

Treble: 8 ohms / bass: 4 ohms

Frequency range (± 3dB):

40Hz-18KHz

Coverage angle:

Level 90o, vertical 50o

Sensitivity:

Treble: 115dB / bass: 101dB

Maximum sound pressure level:

Treble: 138dB / bass: 133dB

Wiring:

Spring terminal

unit:

Treble: 3 "x1 / bass: 15" x2

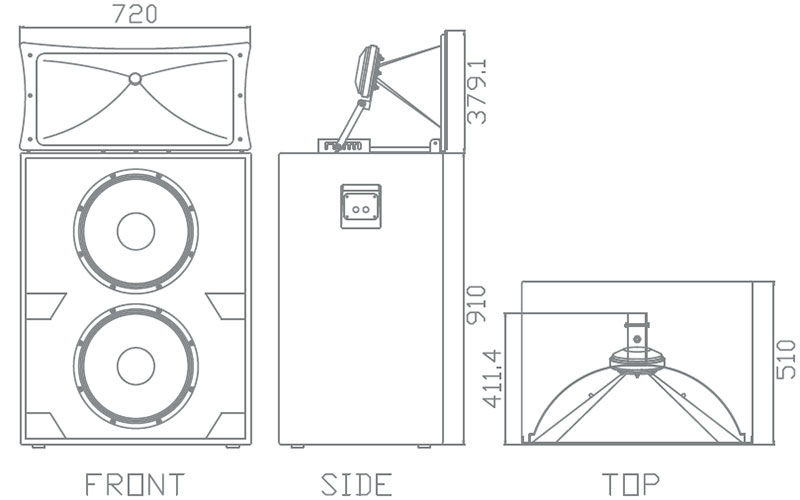

Product Size (High School):

Width 720x high 380x deep 411mm

Product size (bass):

Width 720x high 910x deep 510mm
