System Type:

Built-in, external two-way system

Rated power (built-in frequency):

500W/8 ohms AES

Rated power (external frequency):

Treble: 80W / bass: 400W

Rated impedance:

Treble 8 ohms / bass: 8 ohms

Frequency range (± 3dB):

45Hz-19KHz

Coverage angle:

Level 90o, vertical 90o

Sensitivity:

Treble: 110 dB / bass: 99 dB

Maximum sound pressure level:

Treble: 132 dB / bass: 128 dB

Wiring:

Spring terminal

unit:

Treble: 1.75 "x1 / bass: 15" x1

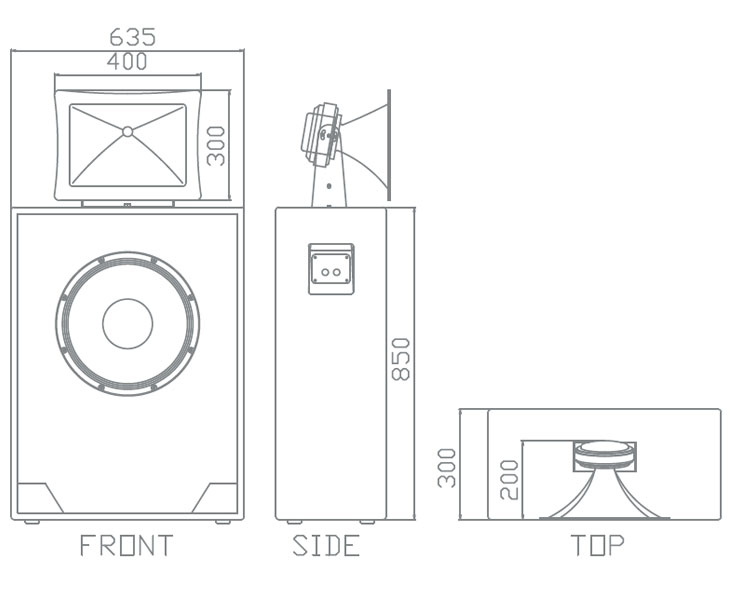

Dimensions (High Tone):

Width 400x high 300x deep 180mm

Product size (bass):

Width 635x high 850x deep 300mm
