System Type:

Built-in, external two-way system

Rated power (built-in frequency):

400W / 8 ohms AES

Rated power (external frequency):

Treble: 80W / bass: 300W

Rated impedance:

Treble: 8 ohms / bass: 8 ohms

Frequency range (± 3dB):

55Hz-19KHz

Coverage angle:

Level 90o, vertical 90o

Sensitivity:

Treble: 110 dB / bass: 98 dB

Maximum sound pressure level:

Treble: 132 dB / bass: 126 dB

Wiring:

Spring terminal

unit:

Treble: 1.75 "/ bass: 12" x1

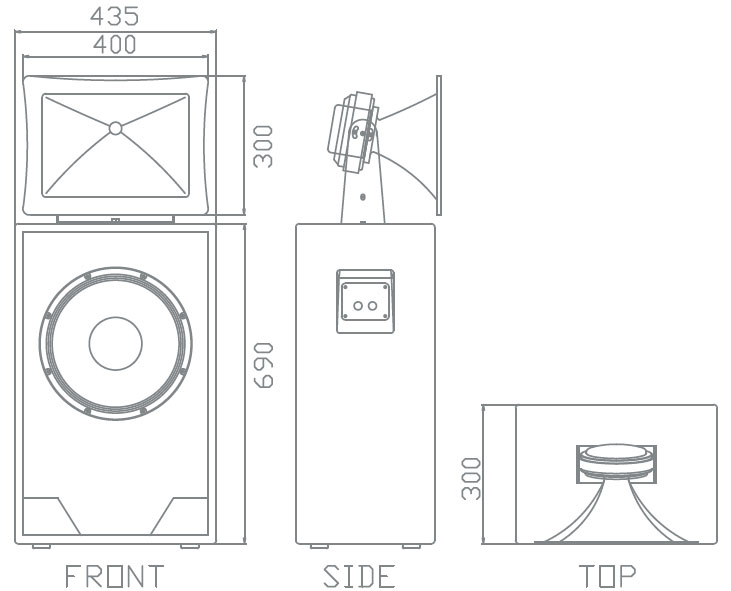

Product Size (High School):

Width 400x high 300x deep 180mm

Product size (bass):

Width 435x high 690x deep 300mm
