Engineering information |
TM215 |
|
Drivers |
LF: 2*15" / HF:1*2" |
|
Rated Power |
900W |
|
Rated power |
1000W |
|
Nominal impedance |
4 ohms |
|
Frequency Range |
33Hz-19KHz |
|
Sensitivity(1m/1W) |
100dB |
|
MAX SPL |
133dB |
| Dispersion(HxV) | 90°*60° |
|
Enclosure Material |
Mixed wood plywood |
|
Enclosure Grille |
Black round hole dustproof steel mesh inside the sticky breathable cotton |
|
Finish |
Black oil-friendly wear-resistant paint (color can be customized) |
|

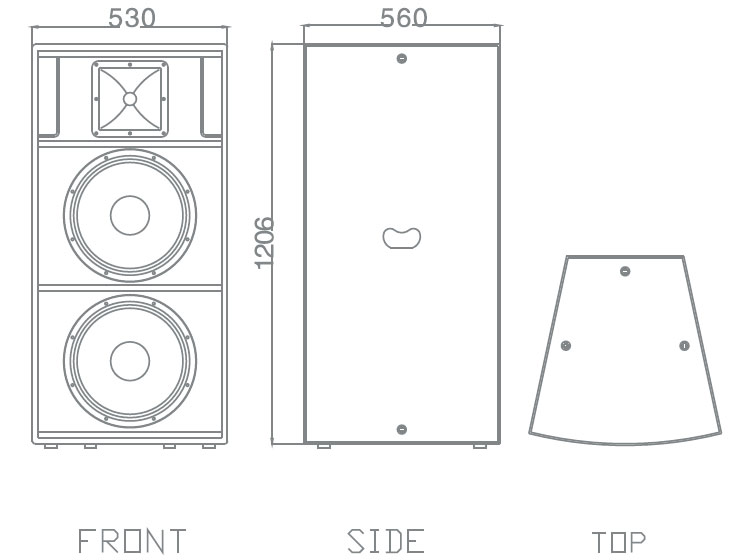

Dimensions(W*D*H)（mm) |
530*560*1206 |
|
Net weight (Kg) |
50.2Kg |
|
Applications |
Conference room, lecture hall, multi - purpose hall, auditorium, school, cafe, station, dock |
|
Engineering information |
TM215B |
|
Drivers |
LF: 2*15" / HF:1*3" |
|
Rated Power |
1100W |
|
Rated power |
1300W |
|
Nominal impedance |
4 ohms |
|
Frequency Range |
35Hz-19KHz |
|
Sensitivity(1m/1W) |
102dB |
|
MAX SPL |
135dB |
| Dispersion(HxV) | 90°*60° |
|
Enclosure Material |
Mixed wood plywood |
|
Enclosure Grille |
Black round hole dustproof steel mesh inside the sticky breathable cotton |
|
Finish |
Black oil-friendly wear-resistant paint (color can be customized) |
|
Dimensions(W*D*H)（mm) |
530*560*1206 |
|
Net weight (Kg) |
55.2Kg |
|
Applications |
Conference room, lecture hall, multi - purpose hall, auditorium, school, cafe, station, dock |
