TM8
8＂2-way full range speaker
Applicable Scope:
Conference room, lecture hall, multi - purpose hall, auditorium, school, cafe, station, dock.
SPECIFICATONS
|
Engineering information |
TM8 |
|
Drivers |
LF:1*8"/HF:1*1.35" |
|
Rated Power |
200W |
|
Rated power |
350W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
75Hz-20KHz |
|
Sensitivity(1m/1W) |
96dB |
|
MAX SPL |
122dB |
| Dispersion(HxV) | 90°*60° |
|
Enclosure Material |
Mixed wood plywood |
|
Enclosure Grille |
Black round hole dustproof steel mesh inside the sticky breathable cotton |
|
Finish |
Black oil-friendly wear-resistant paint (color can be customized) |
|
Dimensions(W*D*H)（mm) |
254*235*451 |
|
Net weight (Kg) |
10.3Kg |
|
Applications |
Conference room, lecture hall, multi - purpose hall, auditorium, school, cafe, station, dock |

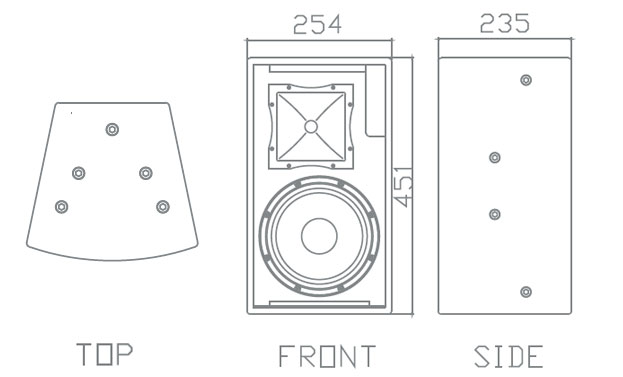

DRAWINGS
