FM15
15＂2-way Loudspeaker
Applicable Scope:
Stage back to the meeting room, lecture hall, multi-purpose hall, auditorium, school and so on.
SPECIFICATONS
|
Engineering information |
FM15 |
|
Drivers |
LF:1*15"/HF:1*3" |
|
Rated Power |
550W |
|
Rated power |
800W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
35Hz-19KHz |
|
Sensitivity(1m/1W) |
99dB |
|
MAX SPL |
129dB |
| Dispersion(HxV) | 90°*60° |
|
Enclosure Material |
Birch plywood |
|
Enclosure Grille |
Black round hole dustproof steel mesh inside the sticky breathable cotton |
|
Finish |
Black water-based wear-resistant paint (color can be customized) |
|
Dimensions(W*D*H)（mm) |
478*368*690 |
|
Net weight(Kg) |
28.5Kg |
|
Applications |
Stage back to the meeting room, lecture hall, multi-purpose hall, auditorium, school and so on. |

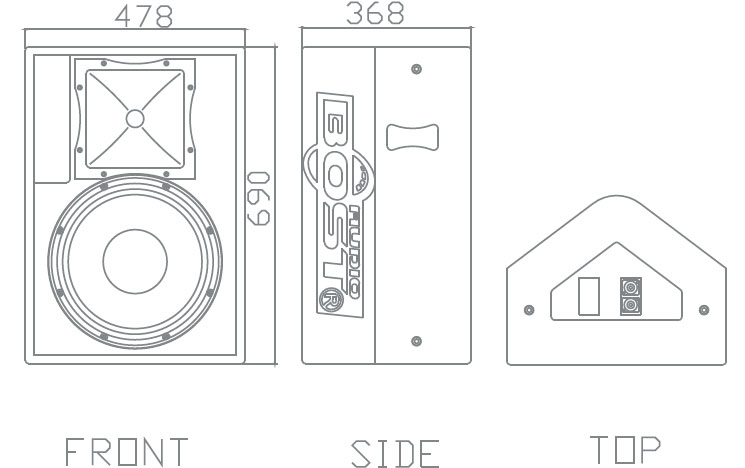

DRAWINGS
