Engineering information

AR4825B

Drivers　

LF: 2 * 15 "neodymium magnetic / MF: 4 * 8" neodymium magnetic / HF: 3 * 3 "neodymium magnetic

Frequency Range

LF: 800W / MF: 800W / HF: 300W

Rated Power

LF: 1000W / MF: 1000W / HF: 400W

Nominal impedance

LF: 4 ohms  / MF: 8 ohms  / HF: 4 ohms

Coverage angle (horizontal x vertical)

35Hz-19KHz

Sensitivity(1m/1W)

LF: 102dB / MF: 103dB / HF: 116dB

MAX SPL

LF: 134dB / MF: 135dB / HF: 144dB

Enclosure Material

Birch plywood

Enclosure Grille

Black round hole dustproof steel mesh inside the sticky breathable cotton

Finish

Water-based water-based wear-resistant paint (color can be customized)

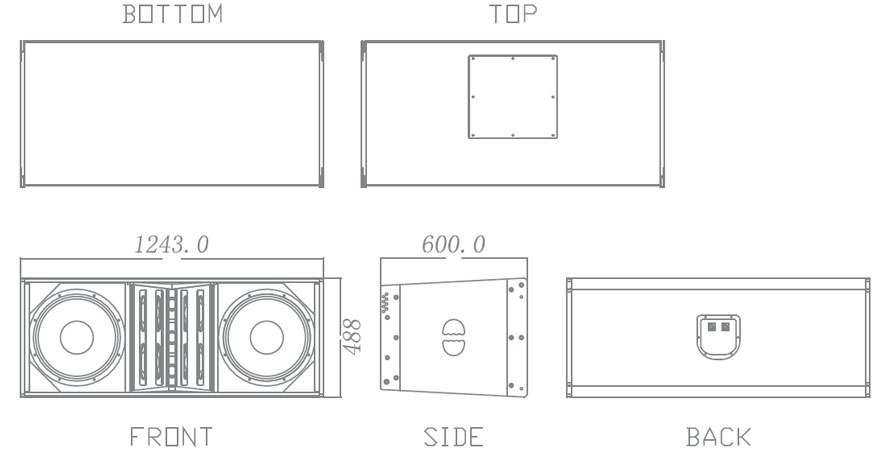

Dimensions(W*D*H)（mm)

1240*600*488

Net weight (Kg)

82.6Kg

Applications

Theater, auditorium, large-scale mobile performance of the main sound reinforcement, sports venues
