Engineering information

AR4825A

Drivers　

LF: 2*15" / MF: 4*8"  / HF:2*3"

Frequency Range

Rated Power

LF: 1000W / MF: 1000W / HF: 350W

Nominal impedance

LF: 4 ohms  / MF: 8 ohms  / HF: 4 ohms

Coverage angle (horizontal x vertical)

30Hz-19KHz

Sensitivity(1m/1W)

LF: 100dB / MF: 100dB / HF: 114dB

MAX SPL

LF: 132dB / MF: 132dB / HF: 140dB

Enclosure Material

Birch plywood

Enclosure Grille

Black round hole dustproof steel mesh inside the sticky breathable cotton

Finish

Water-based water-based wear-resistant paint (color can be customized)

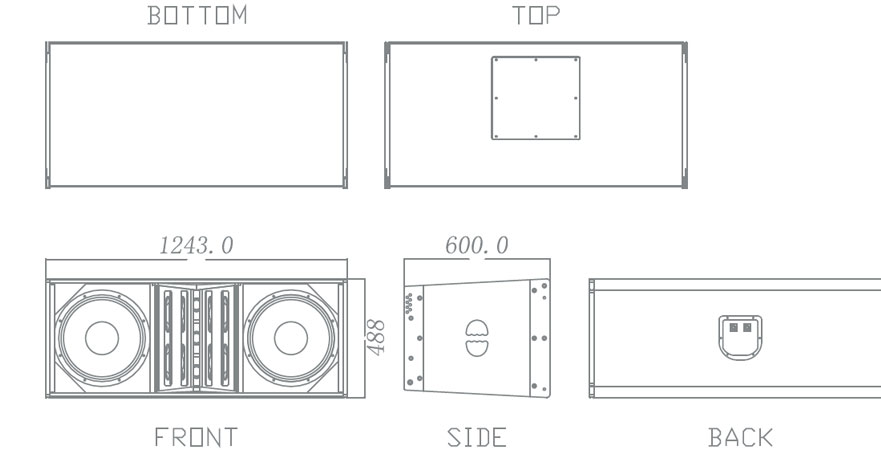

Dimensions(W*D*H)（mm)

1240*600*488

Net weight (Kg)

102.5Kg

Applications

Theater, auditorium, large-scale mobile performance of the main sound reinforcement, sports venues
