Engineering information |
AR213A |
|
Drivers |
LF: 2*13.5" / HF:1*3" |
|
Frequency Range |
900W |
|
Rated Power |
1100W |
|
Nominal impedance |
4 ohms |
|
Coverage angle (horizontal x vertical) |
40Hz-19KHz |
|
Sensitivity(1m/1W) |
101dB |
|
MAX SPL |
134dB |
| Dispersion(HxV) | 100°*30° |
|
Enclosure Material |
Birch plywood |
|
Enclosure Grille |
Positive hexagonal hole dustproof steel mesh inside the paste breathable cotton |
|
Finish |
Water-based water-based wear-resistant paint (color can be customized) |
|

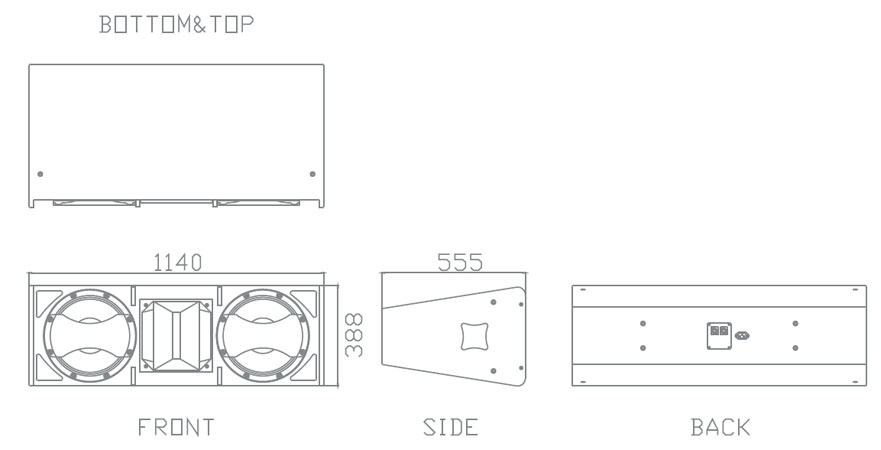

Dimensions(W*D*H)（mm) |
1140*555*388 |
|
Net weight (Kg) |
59.1Kg |
|
Applications |
Theater, gymnasium, multi-purpose hall, auditorium, sports venues, mobile performance, large and medium-sized mobile performances. |
