Engineering information |
AR212 |
|
Drivers |
LF: 2 * 12 "neodymium magnetic / HF: 1 * 3" neodymium magnetic |
|
Frequency Range |
800W |
|
Rated Power |
1000W |
|
Nominal impedance |
4 ohms |
|
Coverage angle (horizontal x vertical) |
45Hz-19KHz |
|
Sensitivity(1m/1W) |
101dB |
|
MAX SPL |
133dB |
| Dispersion(HxV) | 100°*30° |
|
Enclosure Material |
Birch plywood |
|
Enclosure Grille |
Positive hexagonal hole dustproof steel mesh inside the paste breathable cotton |
|
Finish |
Water-based water-based wear-resistant paint (color can be customized) |
|

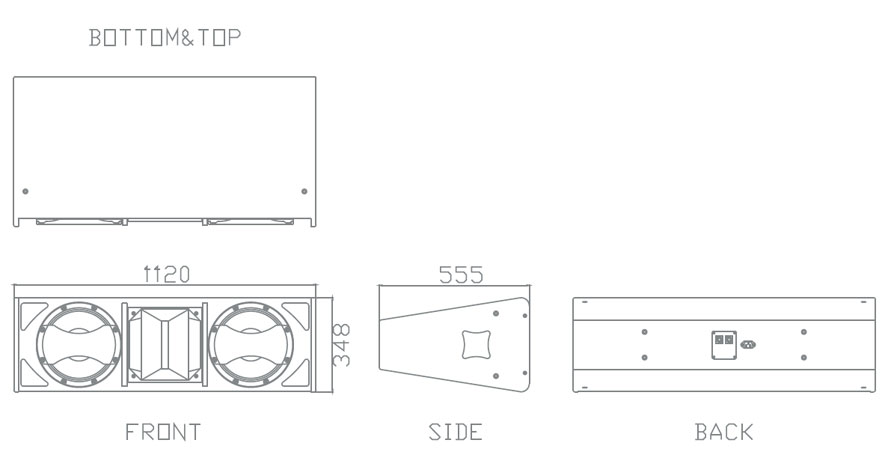

Dimensions(W*D*H)（mm) |
1120*555*348 |
|
Net weight (Kg) |
45.5Kg |
|
Applications |
Theater, auditorium, banquet hall, mobile performance, sports venues, multi-purpose hall, large conference room |
